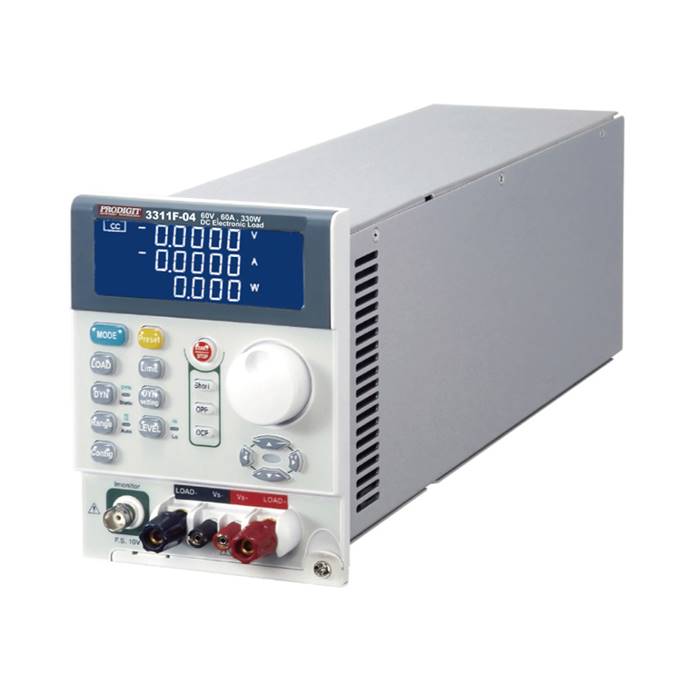

3311F-04 DC Electronic Load 60V , 60A , 330W

Description

l   Each 3310F Series module has its own control and display panel, CC/CR/CV/CP/Dynamic modes, plug in 3300F with 150 sets Store/Recall memory which provides load set-up more efficientlyalso can be controlled intranet via RS232EthernetUSB and GPIB interface.

l   SHORT time setting and SHORT_VH, SHORT_VL setting functionalso can measure Short Voltage and Current.

l   Dynamic can be simulated under CC, CP mode. The current Rise/Fall slew rate can be adjusted individually and there is an external signal input so that load can have a simulated Arbitrary Waveform.

l   The additional OCP OPP test function operated by both mainframe and module that will be more efficiency and accuracy on OCP, OPP testing.

l   Programmable Load ON/OFF voltage, GO/NG meter check, Voltage meter display + or “ – “ is selectable and 150 sets Store/Recall larger memory is much advance feature for each different application.

l   150 sets test parameter and status storage function can call the storage memory real time in accordance with the auto sequence requirement.

l   Short, OCCP and OCDP function test for BMS protection board is provided (option).



Features

l   5 digital V / A / W Meter.

l   High-speed measurement and communication transmission.

l   V.A.W. values can be displayed simultaneously.

l   Large LCD Displaysetting values can be adjusted by rotary knob or push button.

l   OCP OPP test function.

l   Must be configured in 3302Fsingle channel mainframe3302F mainframe provides the NTC simulation test functionOption)、3305Ftwo channels mainframeor 3300Ffour channels mainframeand the mainframe with 150 sets Store / Recall memory.

l   Power ON status value can be set.

l   Flexible CC. CR, CV, CP, Dynamic and Short operation modes.

l   SHORT time setting and SHORT_VH, SHORT_VL setting function.

l   Protections against V, I, W, and °C.

l   Voltage meter display the polarity positive(” + ”)or negative(” - ”)is selectable.

l   SYNC. Load ON function.

l   Optional  Interface : GPIBRS232USBLAN.

l   Support MPPT CC, CR, CV test function for solar panel

l   Function test for BMS protection board is provided (option)

l   New waveform generator plug in model 9923 adds user programmable battery discharge current waveform simulation to Prodigit DC Loads.

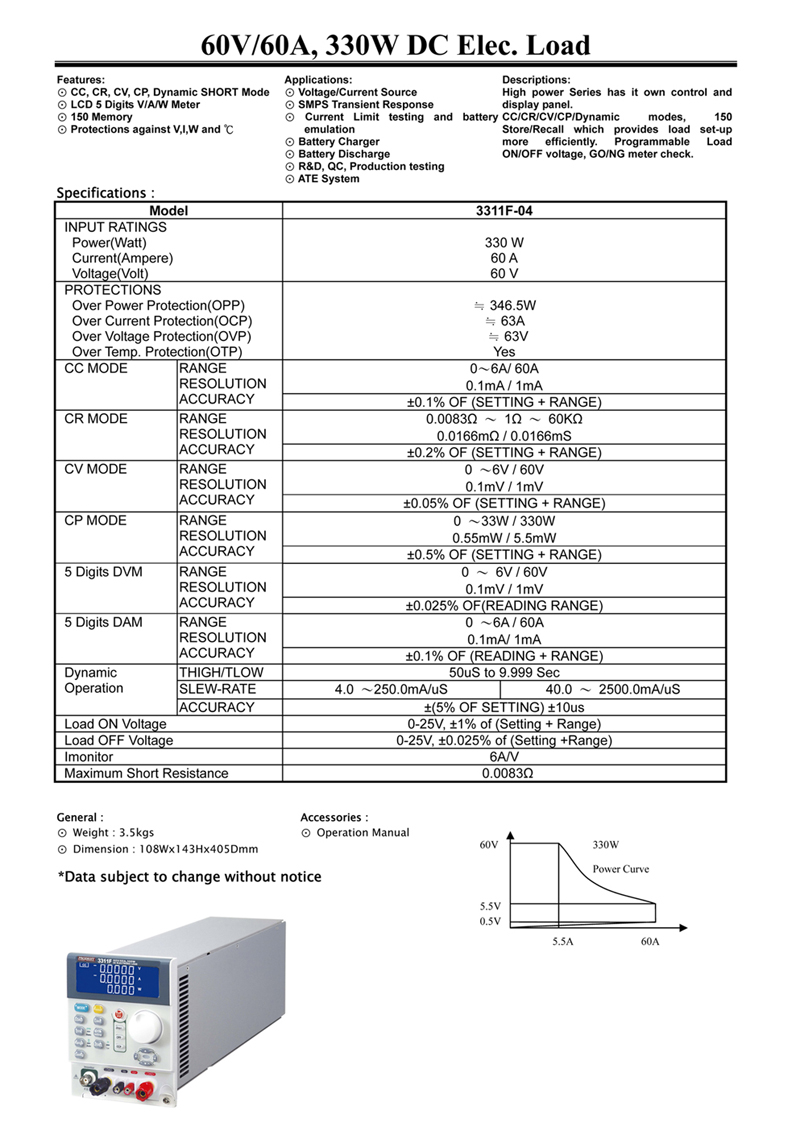

Specifications
